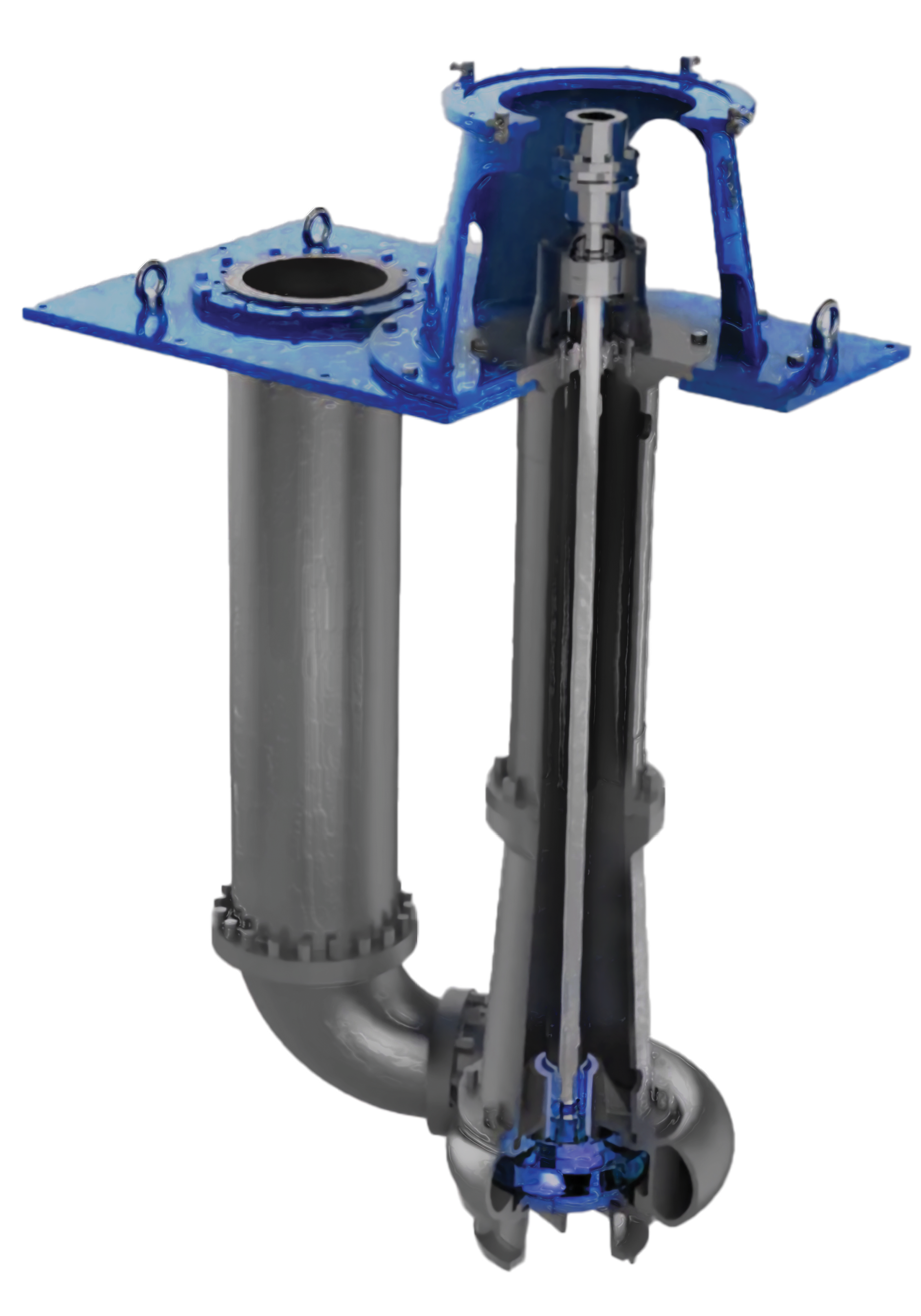

RT-VSE series pumps are vertical semi-submersible pumping units in API 610 versions VS4 and VS5, consisting mainly of hydraulic volute, discharge nozzle, shaft column, mounting plate, motor support and other elements according to the application.
Flow rate: up to 2,600 m3/h
Head: up to 140 m
Materials: cast iron, steel, nickel alloys, stainless steel, duplex steel, etc. on request
Design features: the presence of a steam/cooling jacket, the absence of intermediate and lower bearings in the cantilever (VS5) version. Diving depth up to 3 meters. Possibility to install additional pipes on the suction.
Chemical and petrochemical industry
Pulp Paper Industry
Water supply
