Medium Duty Pumps RT-M/L
The RT-M/L Series Horizontal Slurry Pump is designed to operate in less severe conditions than the RT-AH Series and is excellent for medium solids in the pulp concentration.
Various modifications are possible for this series:
- Equipped with impellers with improved efficiency and NPSH;
- Use of special alloys to increase wear resistance;
- Use of seals that do not require pressurized water supply;
- Possibility of completing with a wide range of bearing units with both grease lubrication and oil bath;
- Possibility of using bearing units for vertical design
APPLICATION AREAS
Mining and processing industry
Metallurgy
Chemical industry
Power engineering
PROCESSES
- Hydrocyclone nutrition
- Flotation
- Drainage organization
- Drill cuttings removal
- Transport of wet beneficiation products
- Light waste transport
- Slag and ash pumping
- Transport of alkaline, lime and rubber solutions
- Transport of pulp waste
- Rolling scale transport
- Transport of saturated mineral solutions and acid pulps
Advantages
1
Reduced metal consumption
The updated design with thickenings at known wear points with an overall reduction in metal intensity shows high mileage while maintaining optimal cost.
2
Balanced reliability
Minimal shaft protrusion on the impeller side reduces shaft axial loads and increases bearing and seal life.
3
Wide range
The standard size range of pumps from RT-L 20 to RT-L 650 allows you to use this series at any technological position.
Features
Overall dimensions

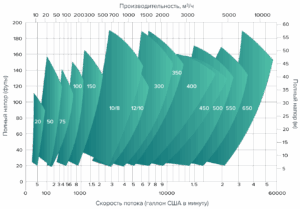

Preliminary selection diagram
