Froth sump pumps RT-AF
RT-AF Vertical Froth Sump Pumps are a series of vertical combined tank slurry pumps designed specifically for the pumping of froth products. The air is separated from the slurry in a vortex flow, which is created by the rotation of the impeller and the tangential inlet of the conical sump of the pump.
Various modifications are possible for this series:
- Use of sumps of various sizes;
- RT-VT: Use of rectangular sumps designed specifically for pumping abrasive slurries
- Use of special alloys and elastomers to increase wear resistance.
APPLICATION AREAS
Mining and processing industry
Metallurgy
Chemical industry
Power engineering
PROCESSES
- Flotation
- Transport of foam products
- Transport of viscous products
- Transport of sampling products
Advantages
1
Flow deaeration
Due to the tangential entry into the conical sump of the pump, air bubbles are separated from the slurry, which ensures smooth operation of the equipment.
2
Flexible layout
The pump, reservoir and electric motor are combined into a single autonomous unit. Easy to install and connect. There is no need to center individual nodes with the construction of special foundations.
3
Easy maintenance
The absence of flooded bearings and shaft seals ensures minimal maintenance costs and eliminates the need to flush the seal with water.

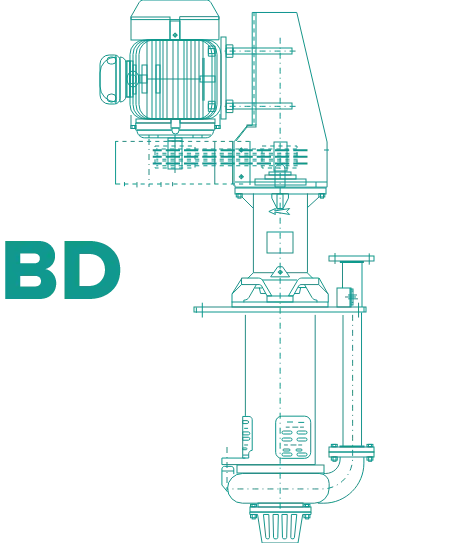

LAYOUT OPTIONS
